Vendee Globe: To Foil or Not to Foil

Published on October 18th, 2016

The eighth Vendée Globe, which begins November 6 from Les Sables d’Olonn, France, is the only non-stop solo round the world race without assistance. Competing in IMOCA 60s, the design innovation for each race is of interest, but perhaps never as much as what we are about to witness…

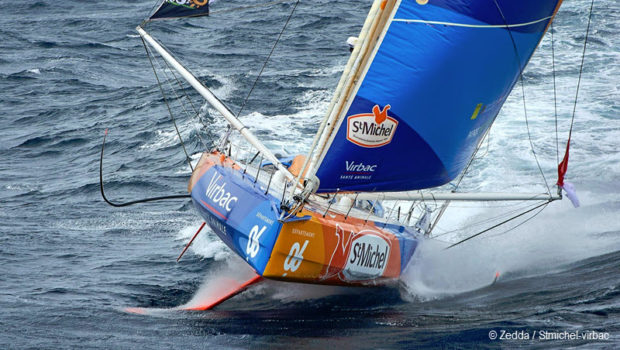

The great debate in this eighth edition of the Vendée Globe: to foil or not to foil. On paper, these appendages allow the IMOCA to be lifted up, as if the boat was lighter, meaning that the top speed increases significantly with a bonus of 10-15% with the wind on the beam.

But these foils are less efficient when sailing upwind, and with the wind astern, they need more than 12 knots of real wind to overcome the foil’s additional drag. This round the world race will make things much clearer. Is it better to sail a boat that is as light as possible or to fly over the seas using foils?

14480519_10157511330395187_3946321238483651458_o

Over the past thirty years, the boats sailed around the world by solo sailors have gone through several radical design changes, firstly for safety reasons, but also to adapt to more stringent class rules. However, the boats have continued to improve in terms of performance with each edition of the Vendée Globe.

In the first Vendee Globe, the winner Titouan Lamazou took 109 days and 8 hours, while François Gabart has held the record since 2013 after completing the voyage in 78 days and two hours, or in other words an improvement of 25% in spite of the race course being around 20% longer.

The first 60-foot boats designed to sail around the world date back to the 1996 BOC Challenge, the second edition of the solo round the world race with stopovers. But since then, when the winner was Crédit Agricole III, a boat built of aluminum and which was heavy and bulky, weighing in at 15 tonnes, designers have tried to find ways to increase power, while reducing weight.

In the first Vendée Globe (1989-90), there were no real design constraints, apart from the length of the hull, but with each passing edition, the domination of wide “sleds” with a lot of ballast and sail has been thrown into question, particularly after the tragic 1996 race, when three boats capsized (Dinelli, Bullimore, Dubois) and one sailor was lost (Gerry Roufs).

While they have tended to become more reasonable with IMOCA class rules, which take into account the stability of the boat and imposes safety gear, the 60-foot boats have continued to include innovations.

In 1996, Yves Parlier set sail around the world with the first wing mast. In 2000, Michel Desjoyeaux won with a canting keel, which allowed the boat to be stiffer. Then, there were the asymmetrical daggerboards, more ballast tanks, huge progress in terms of weather forecasting with the use of GRIB files and onboard routing systems, sails which no longer lost their shape and hulls made of pre-preg carbon.

IMOCA boats took the time down to under 100 days in 2001, completing the round the world voyage in 90 days in 2005, then in under 85 days in 2009 and in 78 days in 2013. Yet, class rules have become increasingly limiting with a maximum beam today of 5.85m, a maximum draft of 4.5m, an air draft of 29m, a maximum of five appendages, minimum freeboard height and coach roof volume.

There have been changes in leadership in terms of the design teams: Finot-Conq, Lombard, Owen-Clarke, Farr, Kouyoumdjian, then VPLP-Verdier with straighter lines and rounder bows to increase lateral stability.

However, innovation costs money and in 2013 the skippers planned to move to a one-design boat to keep costs down. The idea was rejected, but certain elements of the puzzle that makes up a 60-foot IMOCA were standardised (mast, keel) and the volume of the ballast tanks limited.

Inspired by the catamarans in the America’s Cup, the designers came up with the idea of adding foils to lift up the hulls and increase the boats’ speed and power. For the 2016-17 race, six new prototypes have been fitted with these new appendages and one older boat modified to include them.

14380095_10157511331235187_4168838631125465831_o

But because the rules now limit the number of appendages to five (a keel, two rudders and two daggerboards), the designers had to think of a dual function appendage: an anti-drift role to stop the boat from moving sideways when sailing against the wind and with the function of lifting the boat up in addition to the canting keel, which also contributes to that.

The tip of this foil is the key element for the former, while the elbow helps raise the boat, and the shaft, which comes out of the hull, is just a way to support the tip. After a number of sea trials, the skippers and designers defined the best adjustment possible, remembering that class rules forbid the modification of the incidence of the foil. They then changed the shape from the initial designs to enhance performance, in particular when sailing upwind.

Now, all of the foilers are fitted with Version 2 (except Hugo Boss following damage to the foil), but each one has gone for a small difference, with the aim of cranking up performance: doing better upwind, more powerful with the wind on the beam, raised up when sailing downwind.

There is a significant gain in power thanks to the foils at between 70° and 120° from the real wind. That is when the appendage in conjunction with the canting keel raises the hull up, reducing drag and offering an increase in speed of two knots in comparison to a traditional IMOCA without foils.

This latest design feature is now better tuned after a year of tests, but there are still questions about the outcome in the non-stop solo round the world race. Which of the boats will survive? Those that fly on the water with their foils or those that are simply lighter. Who will come out on top after two and a half months of sailing around the three oceans, where there is a huge range of weather conditions from Southern storms to equatorial calms? We should get the answer around 20th January 2017 in Les Sables d’Olonne…

Race detailsEntriesFacebookVendeeGlobe TV

Background:
The eighth Vendée Globe, which begins November 6 from Les Sables d’Olonn, France, is the only non-stop solo round the world race without assistance. Twenty-nine skippers representing four continents and ten nations will set sail on IMOCA 60s in pursuit of the record time set by François Gabart in the 2012-13 race of 78 days, 2 hours and 16 minutes.

For the first time in the history of the event, seven skippers will set sail on IMOCA 60s fitted with foils, which allow the boat to reduce displacement for speed gains in certain conditions. It will be a test to see if the gains can topple the traditional daggerboard configuration during the long and demanding race.

2016-10-03_6-55-47

Source: Vendee Globe
