Must foil in a foiling world

The Youth America’s Cup competition has highlighted the difficulty of racing the AC40, with all forms of maneuver mistakes amplified by the foiling monohull. Jan Pehrson, who is in Barcelona for the event, shares the struggle:

Since the Youth America’s Cup began on September 17, half of the original 12 teams are gone with the remainder still in the running for the title match on September 26. But to get there, not falling off their foils will be critical.

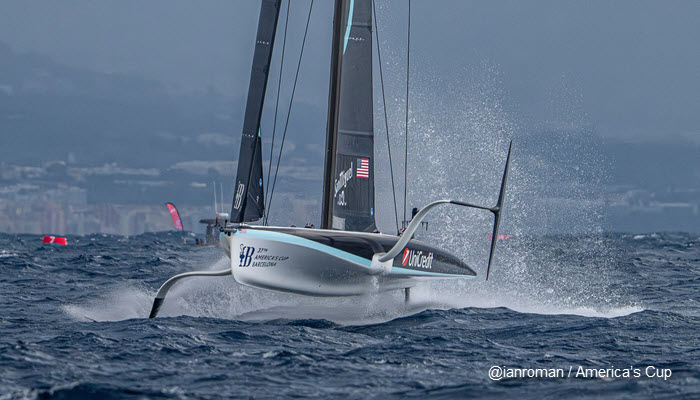

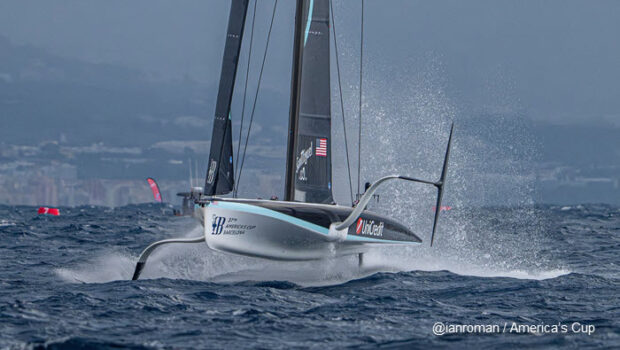

The AC40s are set up with auto-flight control to help stay on the foils, though the teams may choose to over-ride this by toggling a wheel. Now, why would they do this? In high wind, you may want to ride closer to the surface to stay in control. If it’s lighter airs, you might want to ride just a little bit higher if you are, say, going into a tack or a gybe and want to stay on the foils during those maneuvers.

Here are some of the issues that teams must overcome to stay on the foils:

1. Sea-state: If the waves are in the 0.7-1m range with a tight period (ie close together), what happens is that the foils escape the water and lose grip. That will result in a splashdown or ‘ventilation’ – equally, if the rudder comes out of the water (and this happens when bearing away or downwind especially) then you are a passenger to the scene of a nosedive. Nothing the crew can do.

2. Wave direction: In some of the races, the waves were not square to the wind. For example, if the waves were coming from the starboard beam when on starboard tack, teams were effectively tacking ‘into’ the waves. The waves would stop the momentum of the boat and that, naturally, causes the boats to be in danger of falling off the foils.

3. Light airs: The boats need about 14-16 knots of boatspeed to take off on the foils. In light airs, the game is to try and restrict the number of maneuvers that you do, making it safer to go boundary to boundary than to tack on windshifts in the middle of the course. If you are sailing in a straight line at 20-23 knots, there is danger when of falling off the foils in a tack. A target speed of about 23 knots and above is preferred to execute a foiling tack.

4. Wing-wash: The boats can easily fall off the foils if the opposing boat sits on their wind or gybes on their wind and sends ‘wing-wash’ down on the other boat. Effectively they run out of apparent wind, the boatspeed drops, and presto, you are off the foils.

Jan Pehrson is a sailing photojournalist who spends summers in San Francisco, California and winters in St. Pete Beach, Florida. As a racing and cruising sailor and Coast Guard licensed skipper, Jan’s familiarity with sailing and the sailing community lends an in-depth element to her prolific array of photographs and articles. Contact her at www.janpehrson.com
